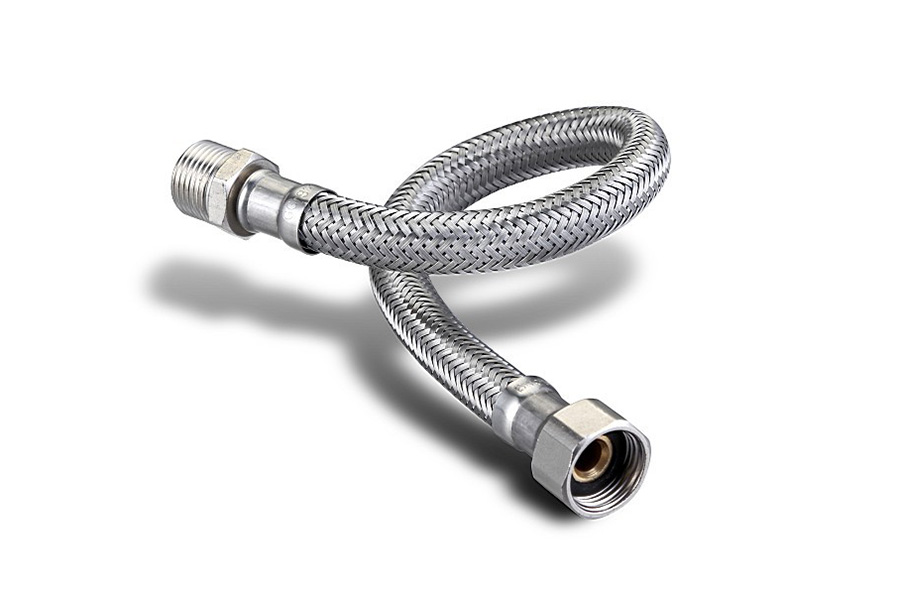

Shower hose
ITEM:F1/2 x M15x1
CODE:GGH012-12A03
APPLICATION:Suitable for connecting shower head and waterheater,faucet and shower room.
Name:Shower hose
Product:
E-mai
Content:


TYPE 1
DESCRIPTION: CHROME PLATED SHOWER HOSE, EPDM INNER PIPE

NO.FITTINGITEMSIZEMATERIALQTY
1NUT A-8Conical F1/223x30x15.5BRASS(58-3A), Cr-plated1
2NUTM15 x 1 BRASS(58-3A), Cr-plated1
3NIPPLE 13x26x9NYLON1
4INSERTF1/28.2x17BRASS(58-3A)1
6WASHERF1/218x11x3EPDM1
8O-RING 19x21x2EPDM1
9SLLEVE 1--14.8x0.3x19S.S.304, Cr-plated1
10SLLEVE 2-- S.S.304, Cr-plated1
11INNER PIPE--6x8EPDM1
12BAND--Thickness 0.20S.S.3041
13OUTER PIPE--13.8S.S.304, Cr-plated, Double Lock1
TECHNICAL DATA
Length   20cm - 225cm
Pull   50 Kg
Working Pressure  10 Bar
Burst Pressure  35 Bar
Working Temperature 1-90 ℃


 TYPE 2
 DESCRIPTION: CHROME PLATED SHOWER HOSE, EPDM INNER PIP

NO.FITTINGITEMSIZEMATERIALQTY
1NUT A-8Conical F1/223x30x15.5BRASS(58-3A), Cr-plated1
2NUTM3/8 BRASS(58-3A), Cr-plated1
3NIPPLE 13x26x9NYLON1
4INSERTF1/28.2x17BRASS(58-3A)1
6WASHERF1/218x11x3EPDM1
8O-RING 19x21x2EPDM1
9SLLEVE 1--14.8x0.3x19S.S.201, Cr-plated1
10SLLEVE 2-- S.S.201, Cr-plated1
11INNER PIPE--6x8EPDM1
12BAND--Thickness 0.16S.S.2011
13OUTER PIPE--13.8S.S.201, Cr-plated, Double Lock1
TECHNICAL DATA
Length   20cm - 225cm
Pull   50 Kg
Working Pressure  10 Bar
Burst Pressure  35 Bar
Working Temperature 1-90 ℃
