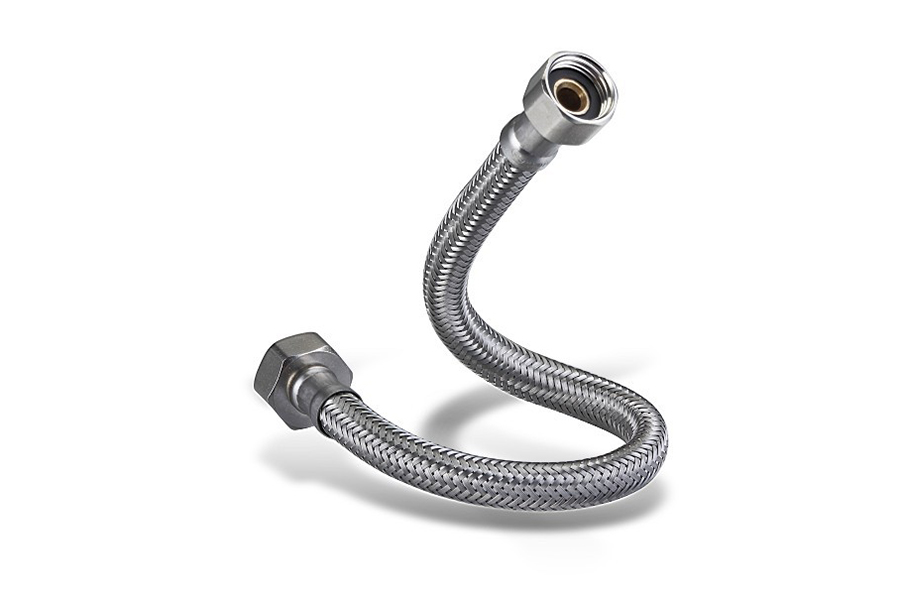

Shower hose
ITEM:Brass Hose
CODE:GGH012-12A05
APPLICATION:Suitable for connecting shower head and waterheater,faucet and shower room.
Name:Shower hose
Product:
E-mai
Content:


TYPE 1
DESCRIPTION: BRASS SHOWER HOSE, EPDM INNER PIPE

NO.FITTINGITEMSIZEMATERIALQTY
1NUTConical F1/222.8x28x15.5BRASS(58-3A), Cr-plated1
2NUTHexagonal F1/222.8x12.5x15.5BRASS(58-3A), Cr-plated1
4NIPPLE 13x26x9NYLON2
3INSERTF1/28.2x17BRASS(58-3A)2
5WASHERF1/218x11x2.5EPDM2
6O-RING 19x21x2EPDM1
7SLLEVE--14.8x0.3x19Brass 62#, Cr-plated2
8INNER PIPE--6x8EPDM1
9BAND--Thickness 0.20BRASS 62#1
10OUTER PIPE--13.8Brass 62#, Cr-plated, Double Lock1
TECHNICAL DATA
Length   20cm - 225cm
Pull   50 Kg
Working Pressure  10 Bar
Burst Pressure  35 Bar
Working Temperature 1-90 ℃

TYPE 2
 DESCRIPTION: BRASS SHOWER HOSE, EPDM INNER PIPE

NO.FITTINGITEMSIZEMATERIALQTY
1NUT A-8Conical F1/222.8x28x15.5BRASS(58-3A), Cr-plated1
2NUT B-1Hexagonal F1/222.8x12.5x15.5BRASS(58-3A), Cr-plated1
4NIPPLE 13x26x9NYLON2
3INSERTF1/28.2x17BRASS(58-3A)2
5WASHERF1/218x11x2.5EPDM2
6O-RING 19x21x2EPDM1
7SLLEVE--14.8x0.3x19S.S.201, Cr-plated2
8INNER PIPE--6x8PVC1
9BAND--Thickness 0.20BRASS 62#1
10OUTER PIPE--13.8Brass 62#, Cr-plated, Double Lock1
TECHNICAL DATA
Length   20cm - 225cm
Pull   50 Kg
Working Pressure  10 Bar
Burst Pressure  35 Bar
Working Temperature 1-65 ℃
